WDW Series UTM

WDW Series UTM

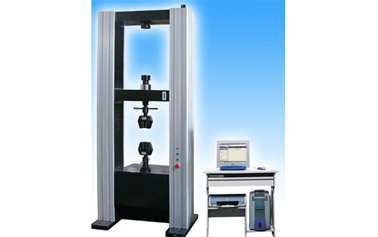

Electronic universal testing machine: Tensile / Compression machines.

The test space can be exchanged with universal fixtures and grips to accommodate different test samples. The load frame consists of four-column, ballscrew, upper crosshead, middle crosshead and worktable, and the adjustable speed system is installed underside of the worktable.

Features:
High accuracy, wide range AC servo motor drive. The ballscrew pair drives the middle crosshead, moving the tension clamp (compression, bending). This equipment's high strength applies high efficiency and stability in both directions. Key parts are processed on the processing centre to ensure the accuracy of the load frame.
