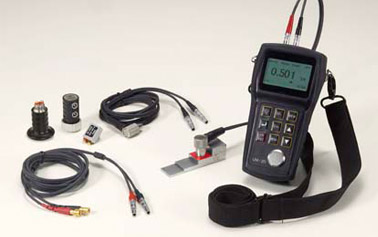

UM-2D Through Coating Gauge

UM-2D Through Coating Gauge
Display:
128 x 64 pixel LCD with back light
Measurement range:
standard 1.0mm to 250mm in steel depending on the probe
Through coating:
2.5mm to 20mm (with standard probes)
Tolerance:
+/- 0.01mm in steel
Display resolution:
0.01mm (less than 100.0mm) / 0.1mm (over 100mm)
Built-in standard blocks:
4.00mm
Velocity:
1000-9999 m/s
Power:
2 x 1.2V AAA battery
Outside dimension:
149 x 73 x 3mm
Weight:
350g
